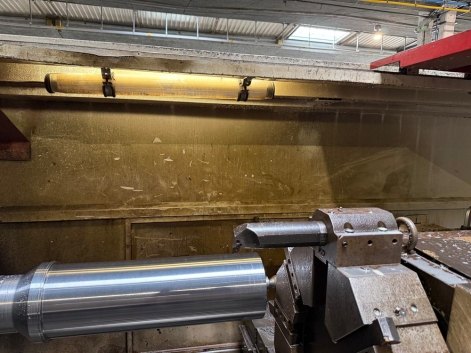

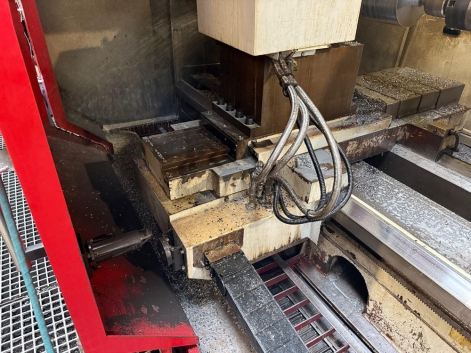

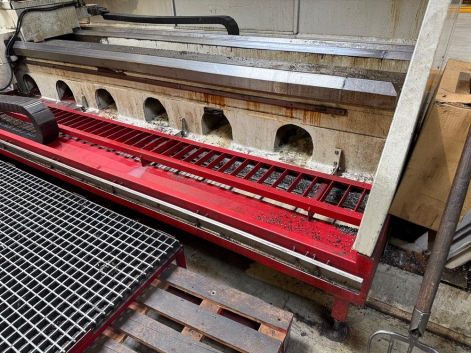

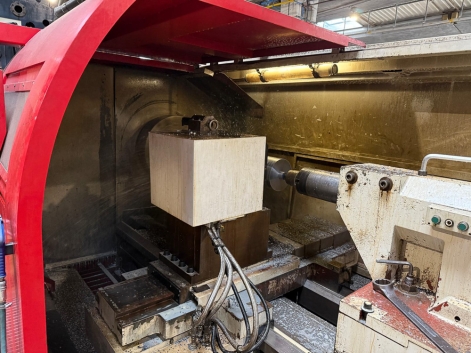

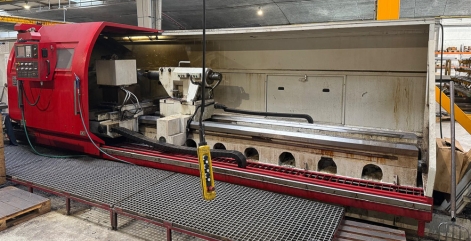

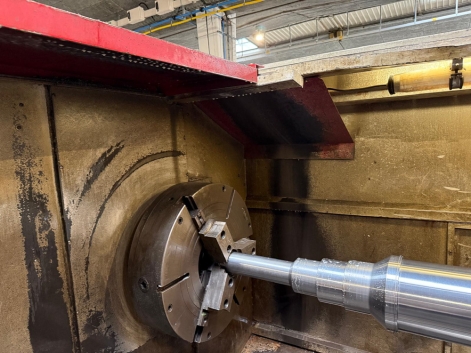

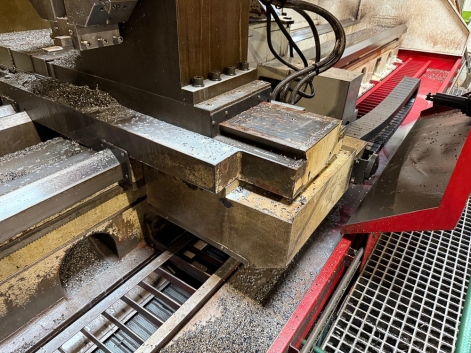

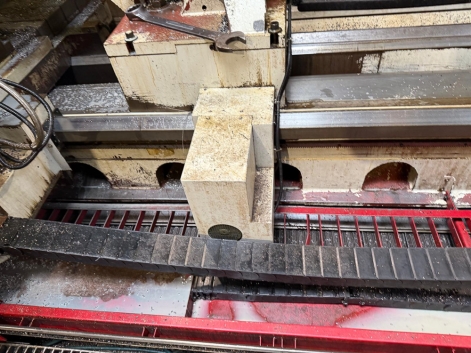

RICHYOUNG RIC-TC52160 CNC LATHE (1.3M SWING X 4.2M BETWEEN CENTRES)

Year of manufacture: 2009-02,

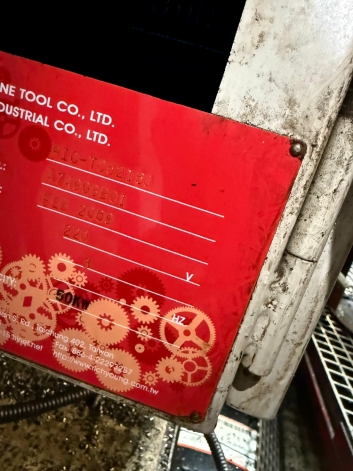

Serial Number: A74908B01,

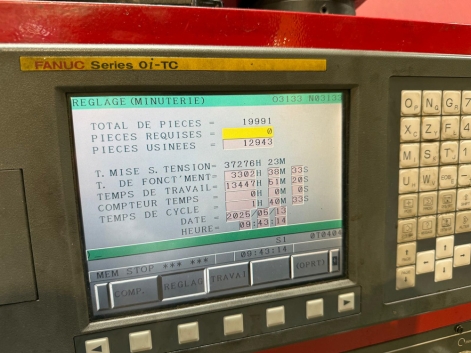

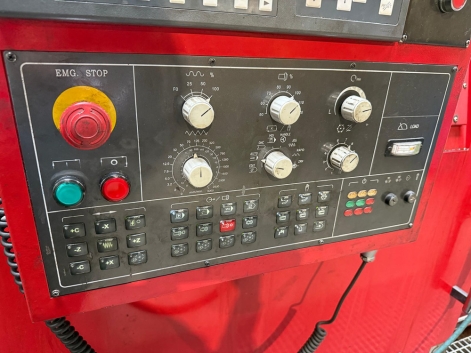

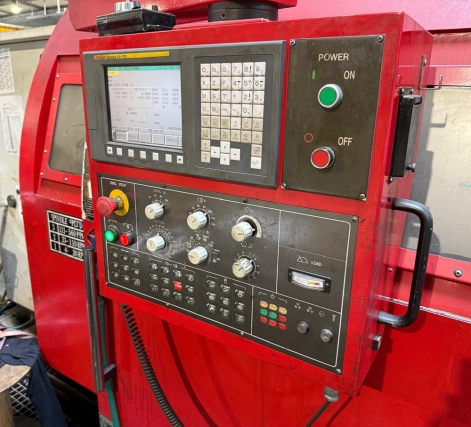

Control: Fanuc Series 0i-TC,

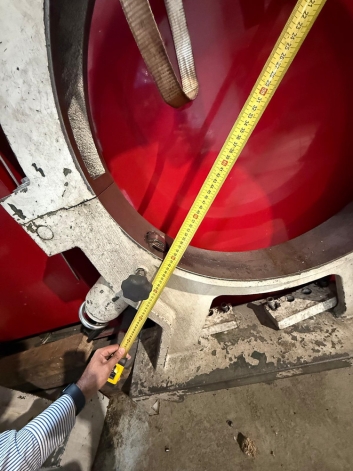

Swing over bed: 1300mm,
Centre height: 650mm,
Swing over cross slide: 900mm,
Distance between centres: 4200mm,

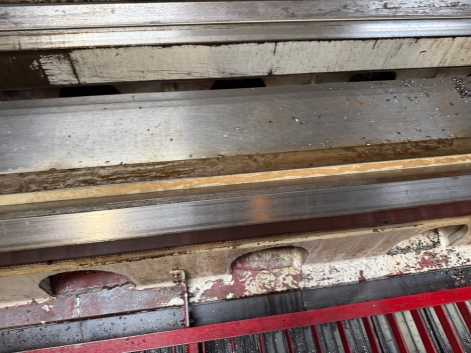

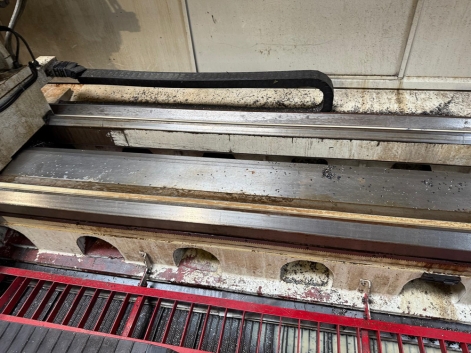

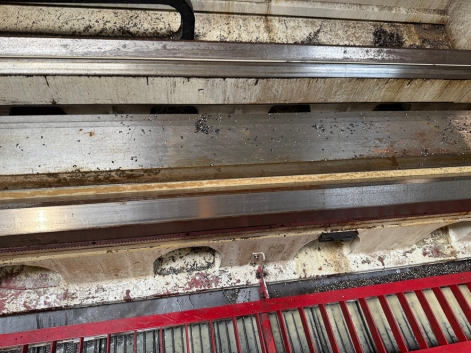

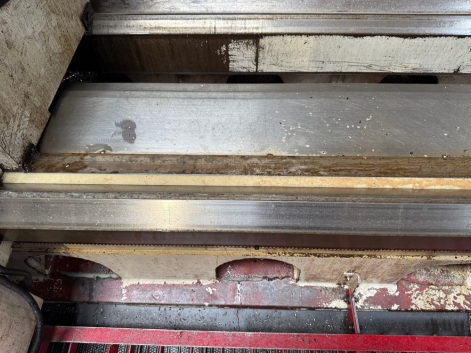

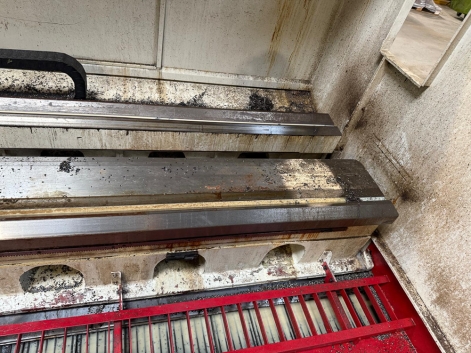

Bed width: 770mm,

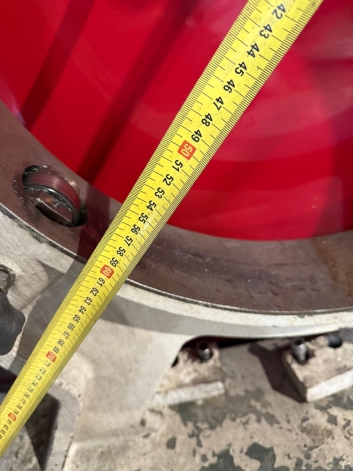

Spindle bore: 410mm,
Spindle diameter: 165mm,
Spindle stroke: 300mm,
Spindle taper (integrated sleeve): MT No.6,
Spindle motor: 22 / 33 kW,
Longitudinal Z-axis travel: 4000mm,
Cross X-axis travel: 680mm,
Rapid traverse X-axis: 5 m/min,
Rapid traverse Z-axis: 5 m/min,
X-axis motor: 17.3 Nm,
Z-axis motor: 51.1 Nm,

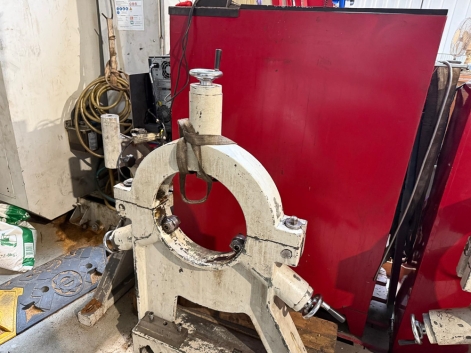

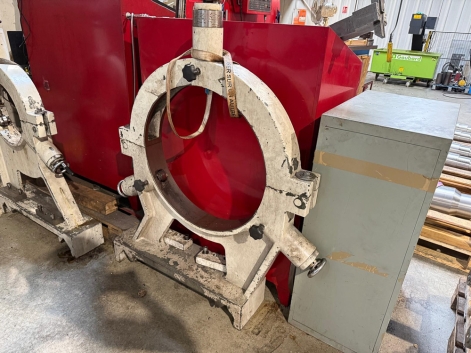

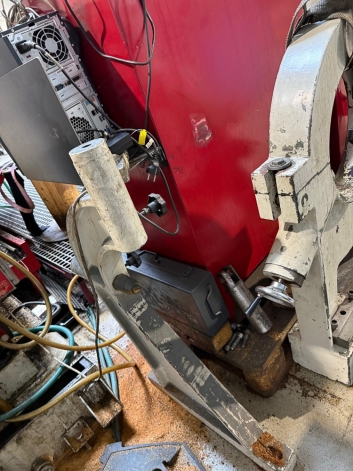

2 Steady rests,

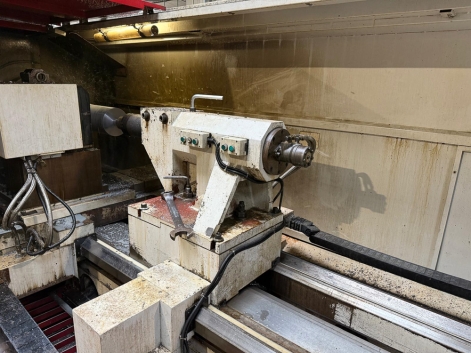

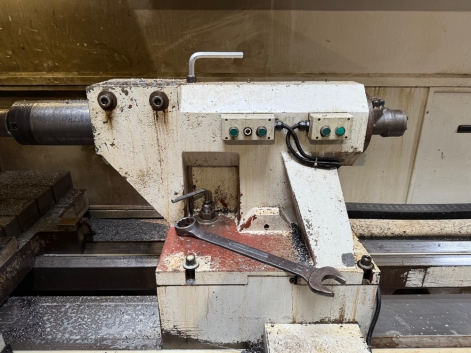

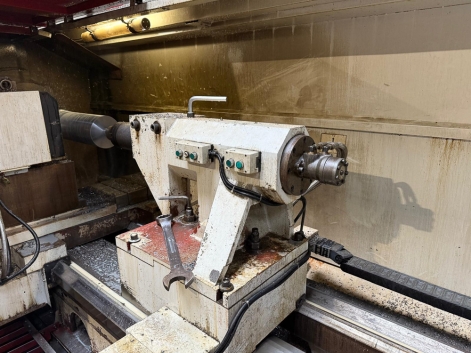

Tailstock,
Equipment

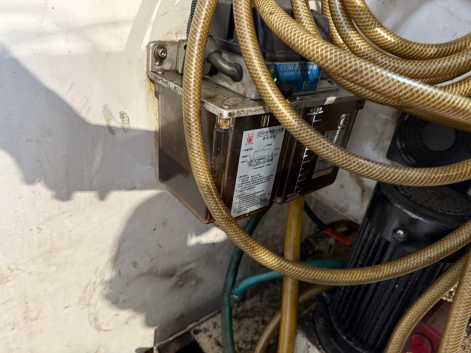

Lubrication/coolant pump: 6 bar,
Dimensions (LxWxH): 8.9m x 2.2m x 2.3m
Weight: 16000 kg,

This item is located in France

Price: PRICE ON REQUEST

Please quote Ref No: 200068 in all correspondance
